DIRT PAN

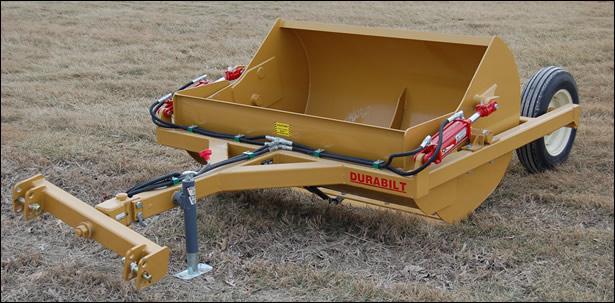

The Dirt Pan attached to the three point lift of a tractor is intended to be used in landscaping, agriculture, and light construction. The unit provides an efficient means of scooping, lifting, and moving soil between points without dragging the soil.

Variable cutting depth is controlled by the tractor's three point lift. Variable dig angle and dump height are hydraulically controlled by the tractor's single remote valve.

Digging, dumping, and transport accomplished without stopping tractor.
FEATURES
- Replaceable cutting blade


LINKS
SPECIFICATIONS
Model Pan
Capacity
Cutting
Width
Cutting
Depth
Dump
Height
Shipping
Weight
Horsepower Required Valves
Required
Cutting
Edge
Cylinders Tires
DP 60 1.5 YD 60" 0-3" 0-8" 1350lbs 30-60 Single Replaceable 2-3" x 8" 7.6 x 15"
DP 84 3 YD 84" 0-3" 0-8" 1650lbs 60-100 Single Replaceable 2-3" x 8" 11 x 15"
DP 84HC 4.5 YD 84" 0-3" 0-8" 2150lbs 80-120 Dual Replaceable 2-3" x 8" 11L x 15"
DP 84HCDB 4.5 YD 84" 0-3" 0-8" 2150lbs 80-120 Dual Replaceable 2-3" x 8" 11L x 15"
DP 84HCDB Includes Draw Bar Hitch and Lifting Axle
