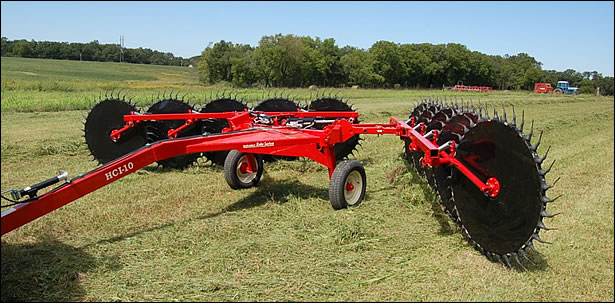

HCI - FULL FEATURED HIGH CLEARANCE RAKE W/INDEPENDENT RAKE ARMS

The HCI High Clearance Rake with independent rake arms is a ultimate full feature rake. Proven compound angle folding design along with wide stance and the low profile, allows for compact and stable transport. Easy adjustment of spring tension on each individual rake arm, as well as easy adjustment of Windrow width and rake wheel angle for all crop conditions. Standard Hydraulic Flow controls and easy wing adjustment for greater windrow adjustment. Dual center splitter and single kicker wheels optional.
FEATURES
- Controlled flow to both hydraulic cylinders so both wings fold at the same time
- Cushioned transport stops take the pressure off of folding mechanisms in transport
- Fully adjustable floatation windrow width, and wheel angle
- 3/16" Steel wheel arm pivots with grease fittings and wheel arms are 7ga pipe
- Available in red or green

View RCI - High Clearance Rake
LINKS
SPECIFICATIONS
Model Working
Width
Windrow
Width
Transport
Height
Transport
Width
Tire Size Horsepower
Required
HCI-8 15'3" to 18' 3' to 5'9" 9' 9' 205/75-15 20hp
HCI-10 18'3" to 21' 3' to 5'9" 9' 9' 205/75-15 20hp
HCI-12 21'3" to 24' 3' to 5'9" 9' 9' 205/75-15 30hp
